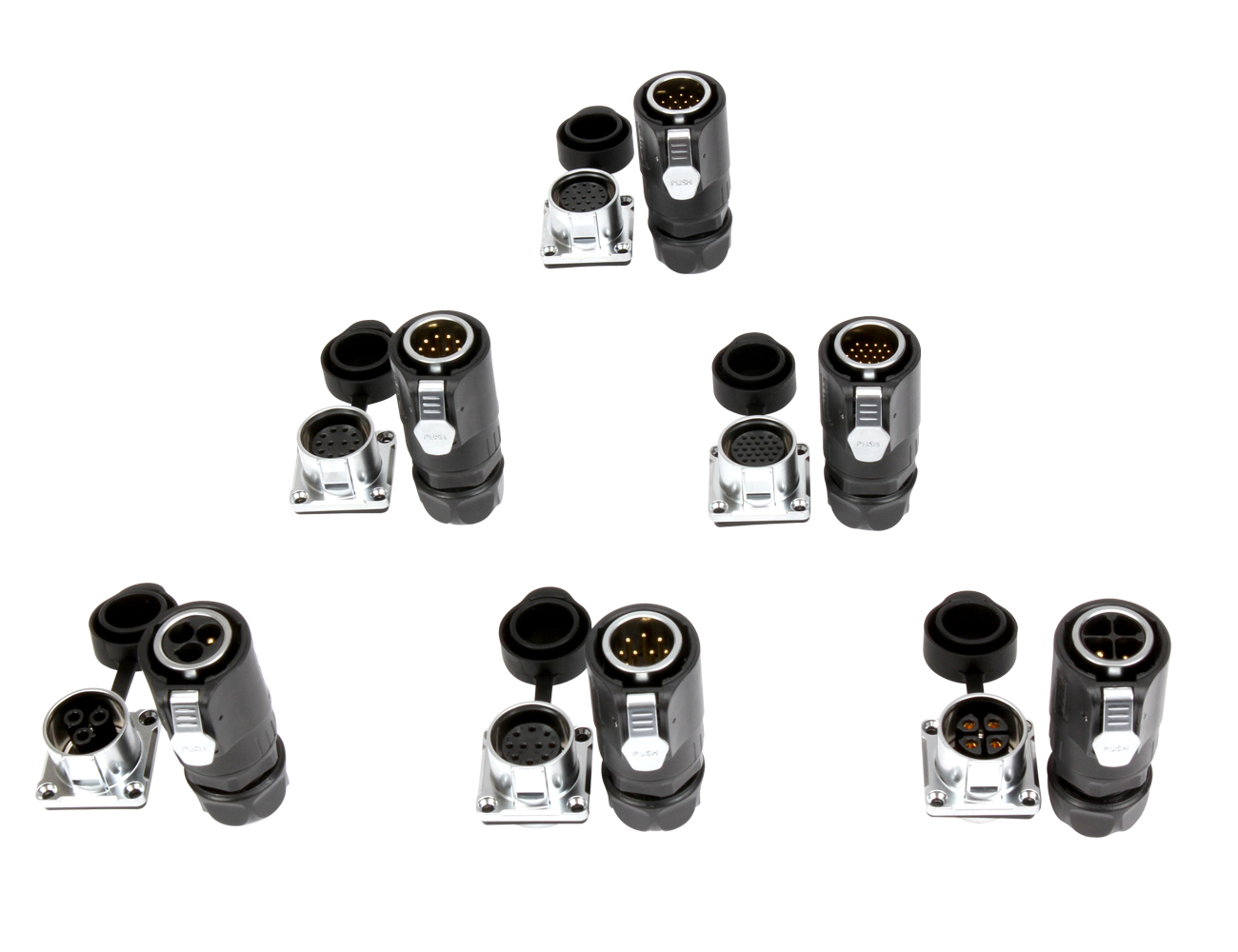

TT30 Series

Technical Drawing 3D 3 Pin Panel Type Female 3D 3 Pin Cable Type Male 3D 4 Pin Panel Type Female 3D 4 Pin Cable Type Male 3D 10 Pin Panel Type Female 3D 10 Pin Cable Type Male 3D 12 Pin Panel Type Female 3D 12 Pin Cable Type Male 3D 19 Pin Panel Type Female 3D 19 Pin Cable Type Male 3D 24 Pin Cable Type Female 3D 24 Pin Cable Type Male
View TTAF Shop

TT30 Series

TT30 Series

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing

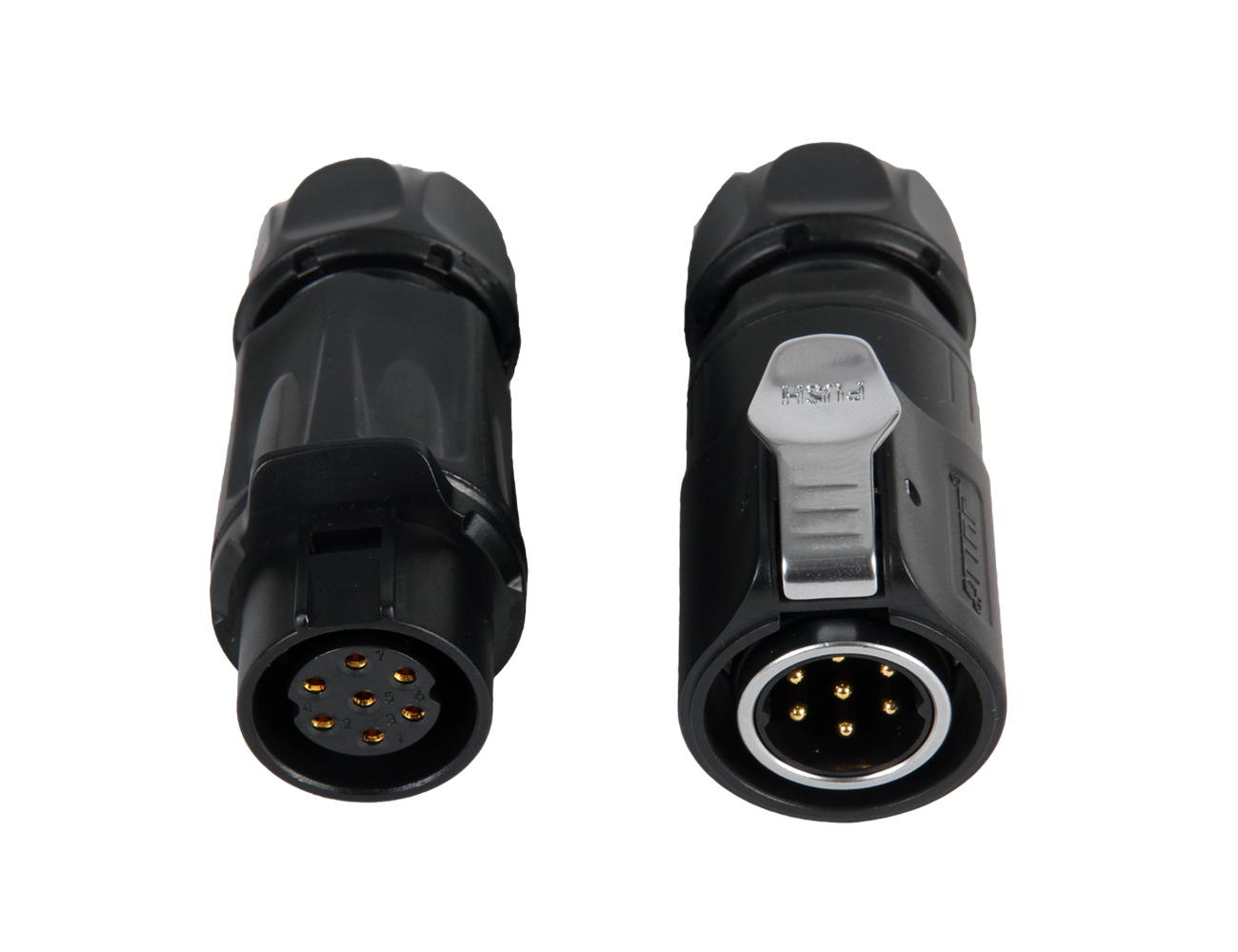

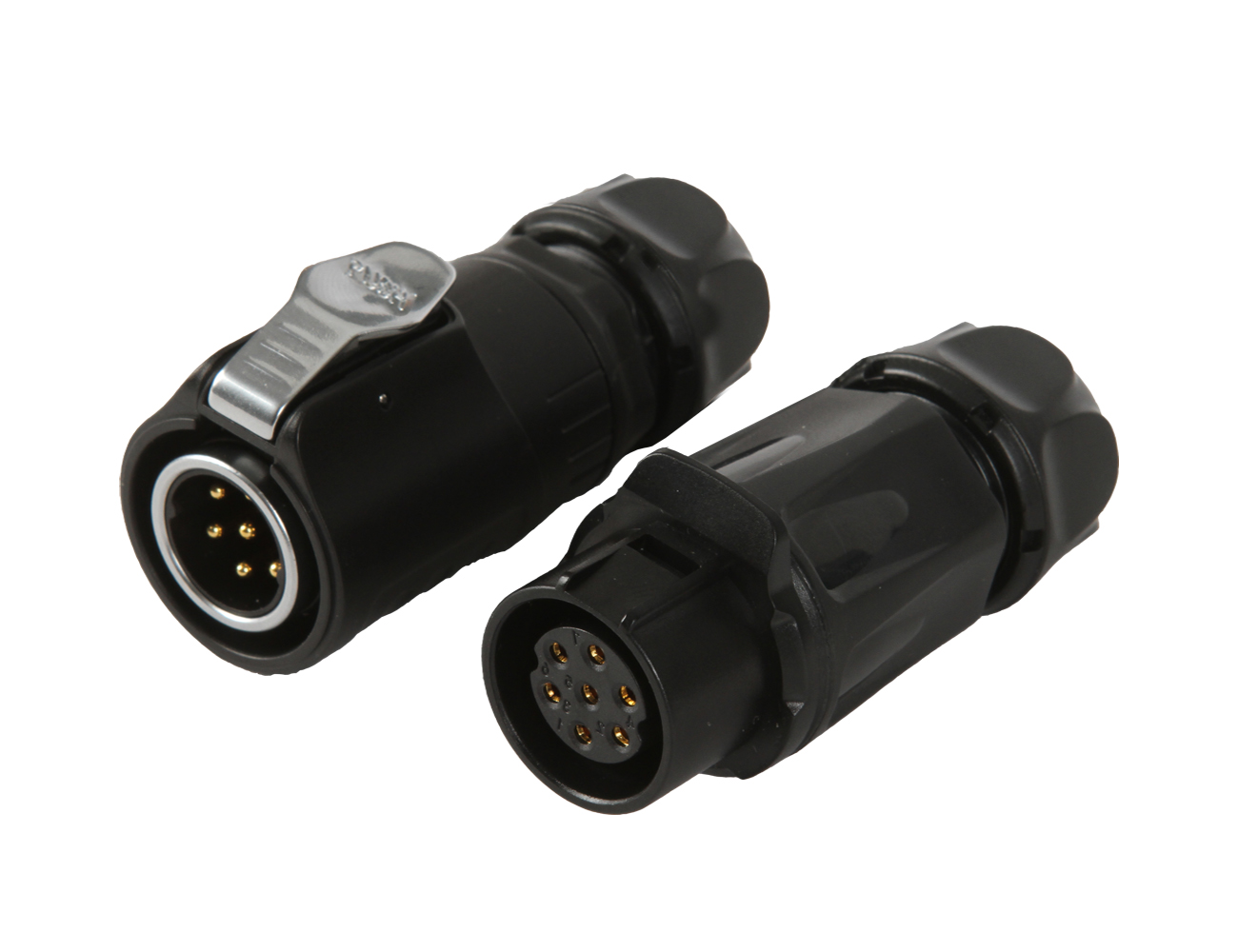

7 Pin
TT30-07FM-PE-01-001 7 PIN FEMALE MALE CONNECTOR TYPE 22A 500V 2500V PBT -40°C ∼ +80°C
3 Pin
TT30-03F-PE-01-001 3 Panel Type Female 22A 500V 2500V PBT -40°C ∼ +80°C
TT30-03M-SX-01-001 3 Cable Type Male 22A 500V 2500V PBT -40°C ∼ +80°C
4 Pin
TT30-04F-PE-01-001 4 Panel Type Female 22A 500V 2500V PBT -40°C ∼ +80°C
TT30-04M-SX-01-001 4 Cable Type Male 22A 500V 2500V PBT -40°C ∼ +80°C
10 Pin
TT30-10F-PE-01-001 10 Panel Type Female 10A 250V 2500V PBT -40°C ∼ +80°C
TT30-10M-SX-01-001 10 Cable Type Male 10A 250V 2500V PBT -40°C ∼ +80°C
12 Pin
TT30-12F-PE-01-001 12 Panel Type Female 10A 250V 2500V PBT -40°C ∼ +80°C
TT30-12M-SX-01-001 12 Cable Type Male 10A 250V 2500V PBT -40°C ∼ +80°C
19 Pin
TT30-19F-PE-01-001 19 Panel Type Female 3A 125V 1500V PBT -40°C ∼ +80°C
TT30-19M-SX-01-001 19 Cable Type Male 3A 125V 1500V PBT -40°C ∼ +80°C
24 Pin
TT30-24F-PE-01-001 24 Cable Type Female 3A 125V 1500V PBT -40°C ∼ +80°C
TT30-24M-SX-01-001 24 Cable Type Male 3A 125V 1500V PBT -40°C ∼ +80°C
