Product Code:8979 Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 2 Pin | |||||||

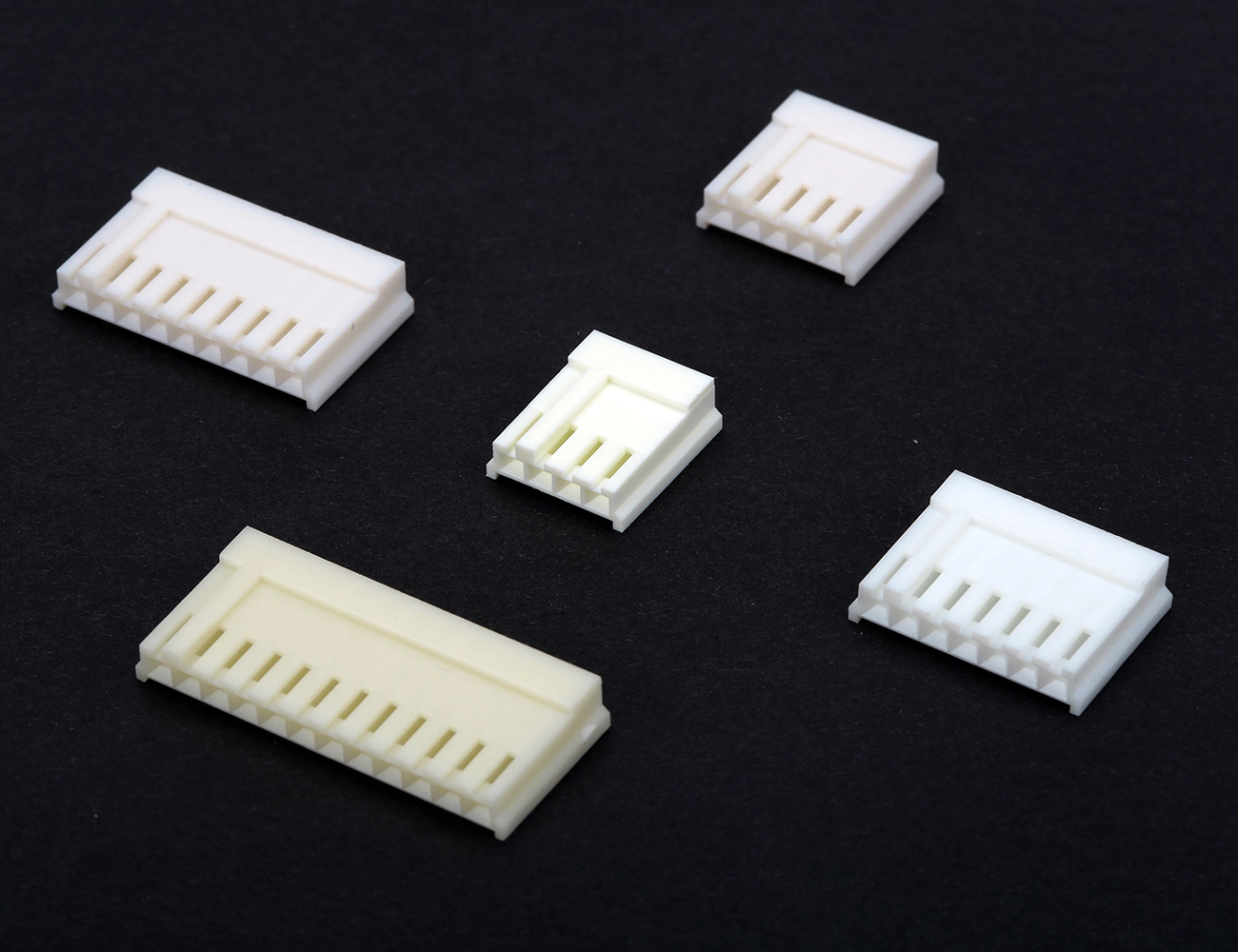

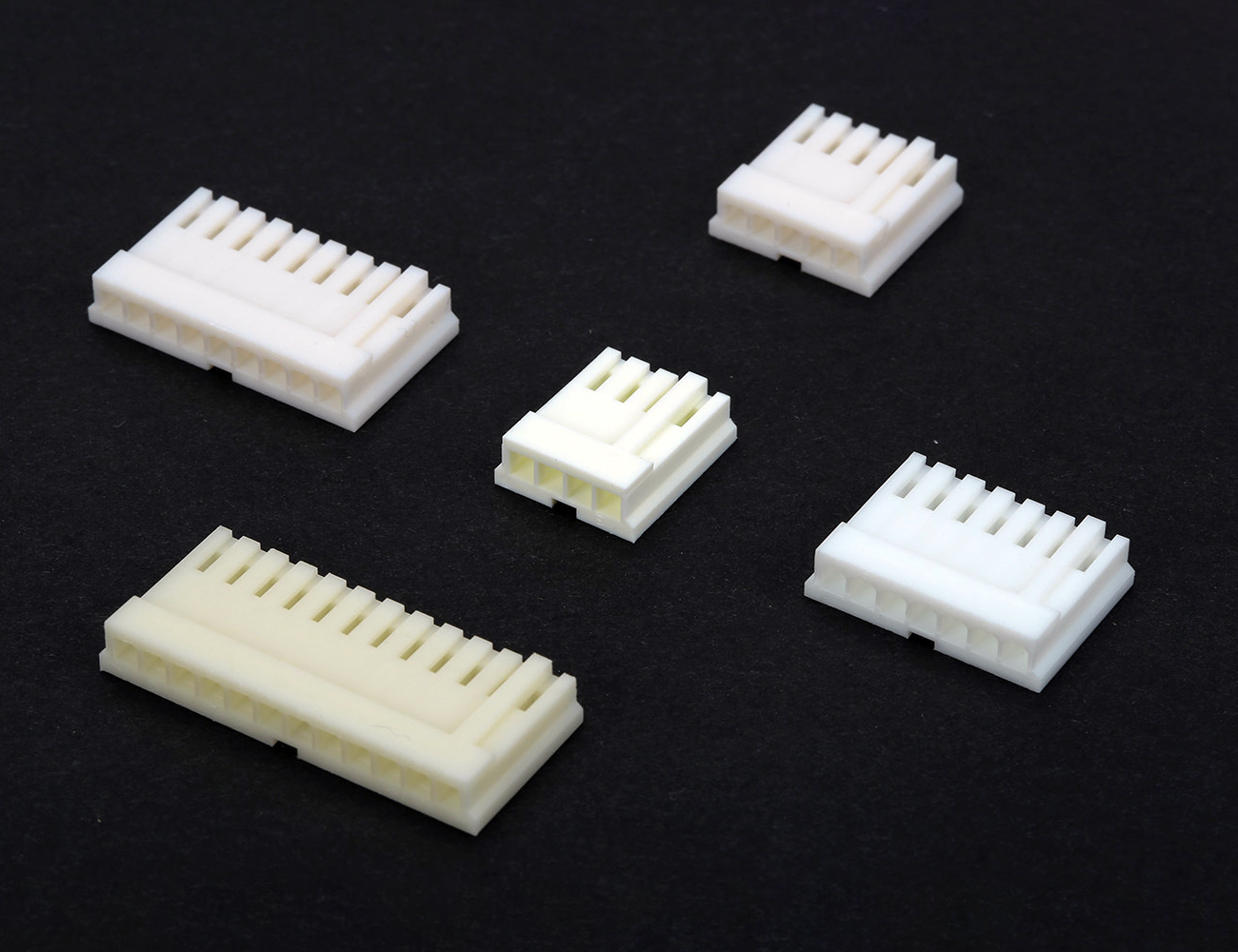

| 8979-02H | 2 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| 3 Pin | |||||||
| 8979-03H | 3 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| 4 Pin | |||||||
| 8979-04H | 4 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| 5 Pin | |||||||
| 8979-05H | 5 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| 6 Pin | |||||||
| 8979-06H | 6 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| 7 Pin | |||||||
| 8979-07H | 7 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| 8 Pin | |||||||
| 8979-08H | 8 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| 9 Pin | |||||||
| 8979-09H | 9 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| 10 Pin | |||||||
| 8979-10H | 10 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| 11 Pin | |||||||
| 8979-11H | 11 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| 12 Pin | |||||||
| 8979-12H | 12 Pin 2.54mm Female Disk for Drive | 3A | 250V | 800VAC @ 60 s. | Nylon 66 UL94V-0 | -25°C ~ +85°C | |
| Terminal | |||||||

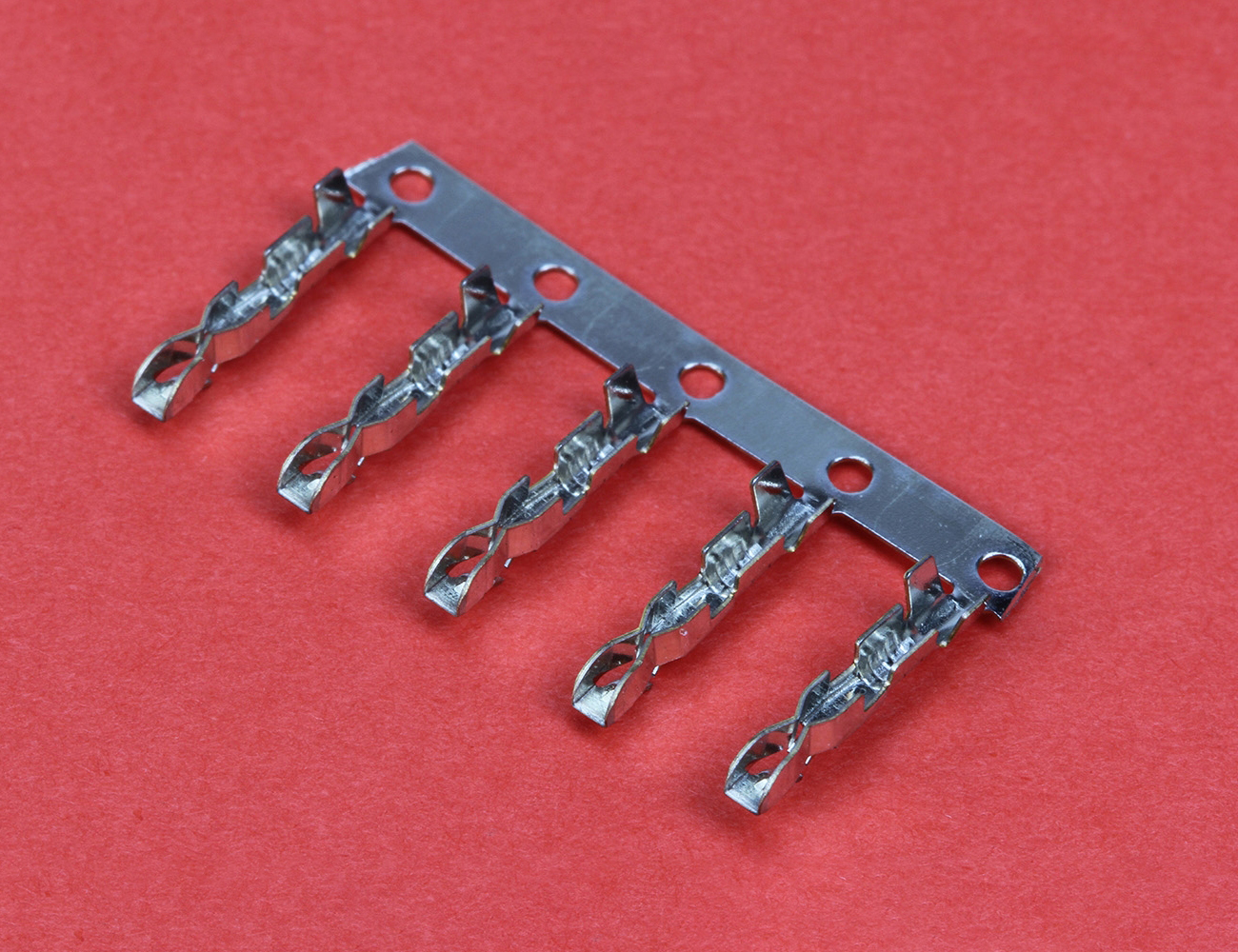

| 8979-T | Crimp Terminal Female | - | - | - | - | - |
