Mini XLR Series
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 3 Pin | |||||||

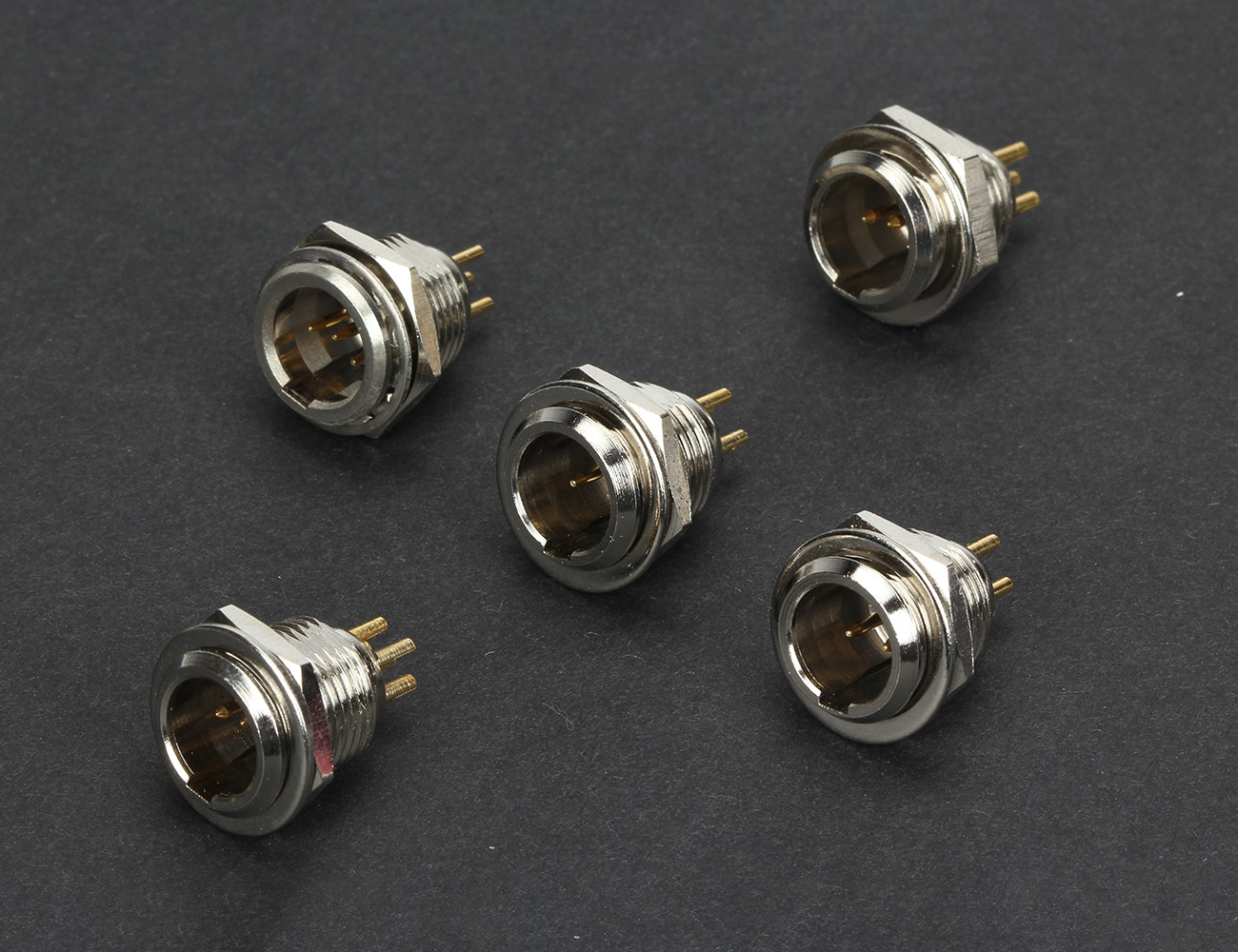

| XLR-3C | 3 Pin Chassis Mount Type Male Mini XLR Connector | 5A | 250V / AC / DC | - | ABS + PVC / Nickel-PA6 | -30°C # +80°C | |
| 3 Pin | |||||||

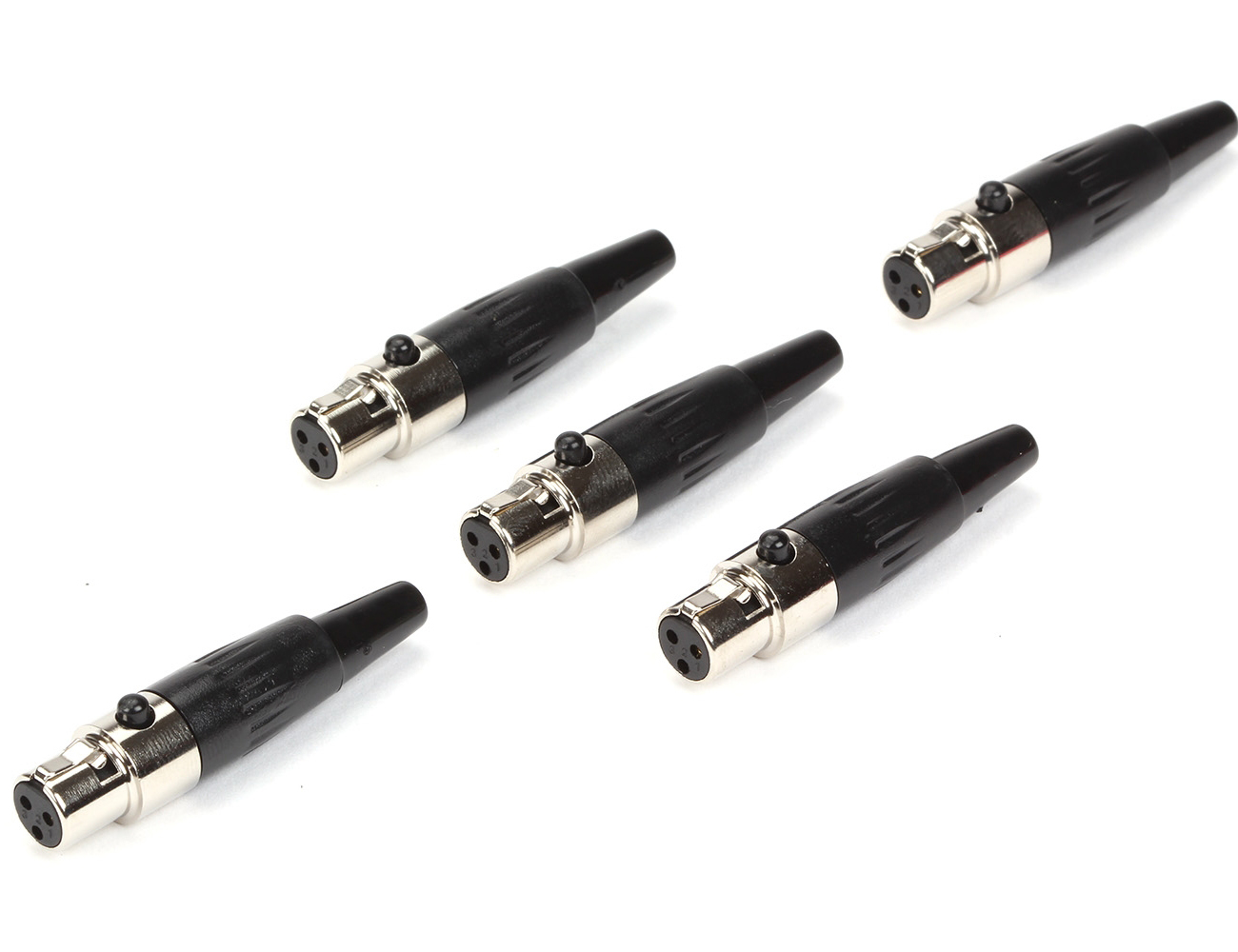

| XLR-3B | 3 Pin Cable Type Female Mini XLR Connector | 5A | 250V / AC / DC | - | ABS + PVC / Nickel-PA6 | -30°C # +80°C | |
| 3 Pin | |||||||

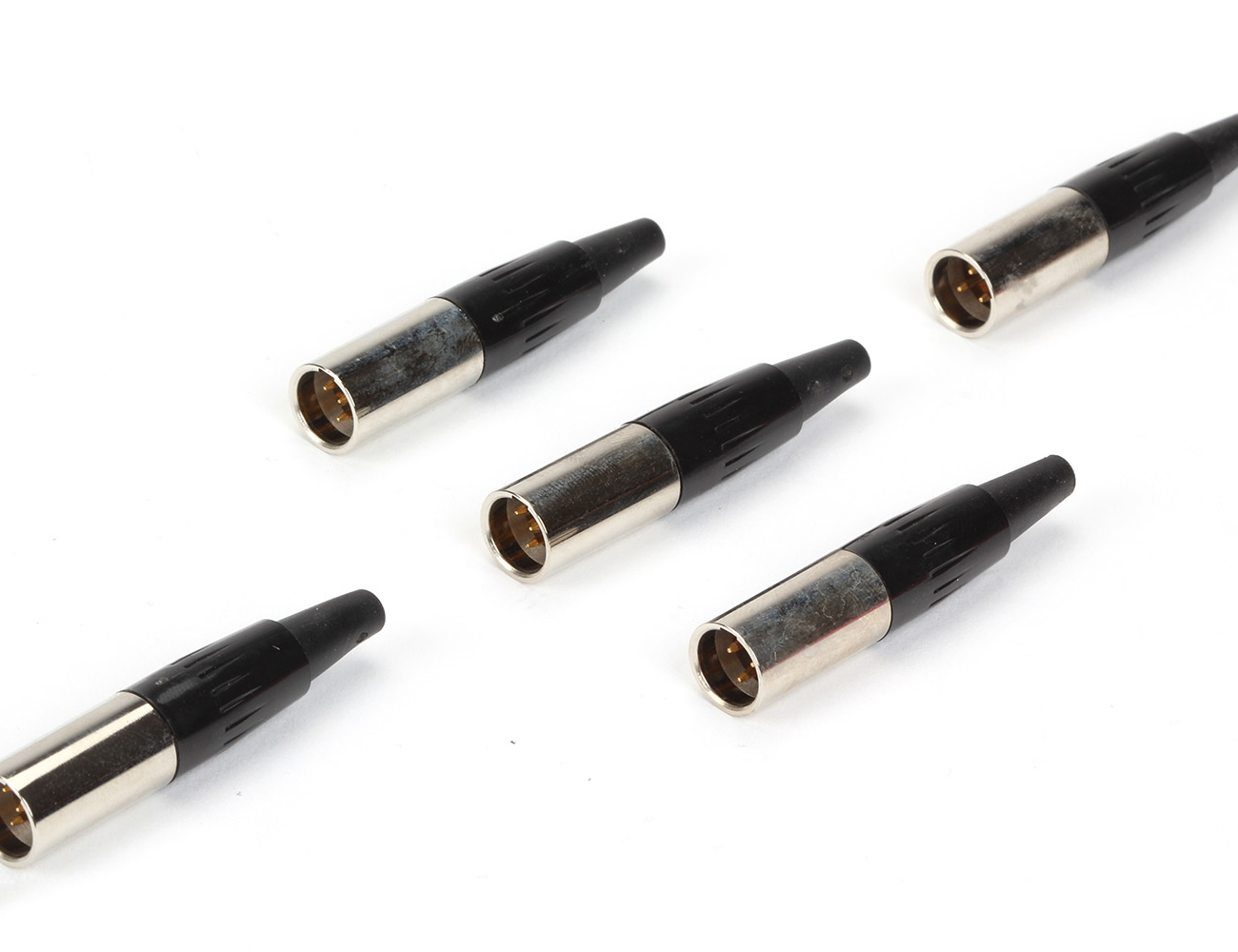

| XLR-3A | 3 Pin Cable Type Male Mini XLR Connector | 5A | 250V / AC / DC | - | ABS + PVC / Nickel-PA6 | -30°C # +80°C | |
| 4 Pin | |||||||
| XLR-4C | 4 Pin Chassis Mount Type Male Mini XLR Connector | 5A | 250V / AC / DC | - | ABS + PVC / Nickel-PA6 | -30°C # +80°C | |
| 4 Pin | |||||||
| XLR-4B | 4 Pin Cable Type Female Mini XLR Connector | 5A | 250V / AC / DC | - | ABS + PVC / Nickel-PA6 | -30°C # +80°C | |
| 4 Pin | |||||||
| XLR-4A | 4 Pin Cable Type Male Mini XLR Connector | 5A | 250V / AC / DC | - | ABS + PVC / Nickel-PA6 | -30°C # +80°C | |
| 5 Pin | |||||||
| XLR-5C | 5 Pin Chassis Mount Type Male Mini XLR Connector | 5A | 250V / AC / DC | - | ABS + PVC / Nickel-PA6 | -30°C # +80°C | |
| 5 Pin | |||||||
| XLR-5B | 5 Pin Cable Type Female Mini XLR Connector | 5A | 250V / AC / DC | - | ABS + PVC / Nickel-PA6 | -30°C # +80°C | |
| 5 Pin | |||||||
| XLR-5A | 5 Pin Cable Type Male Mini XLR Connector | 5A | 250V / AC / DC | - | ABS + PVC / Nickel-PA6 | -30°C # +80°C |
