Material
| Housing | PBT UL94V-0; Color:Black. |
| Contact | Phosphor Bronze |
| Nut | Brass. |
| O-Ring | NBR ; Color:Black |
Finish
| Contact | 10 Micro Inches Min. Gold Plating. |
| Solder Area | Gold Flash. |
| Under Plate | Nickel |
| Nut | Nickel Plated 60u''~100u'' Over All. |

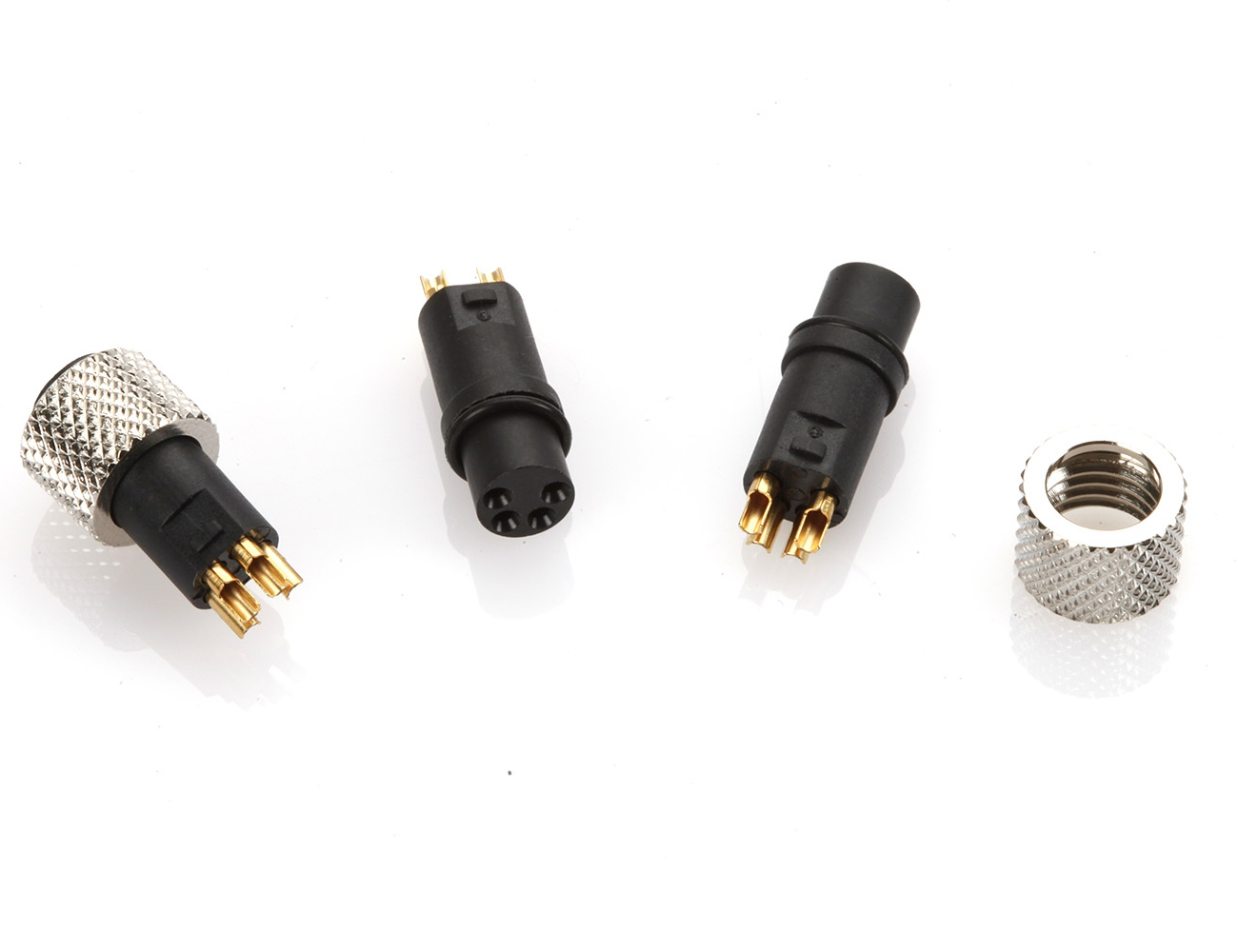

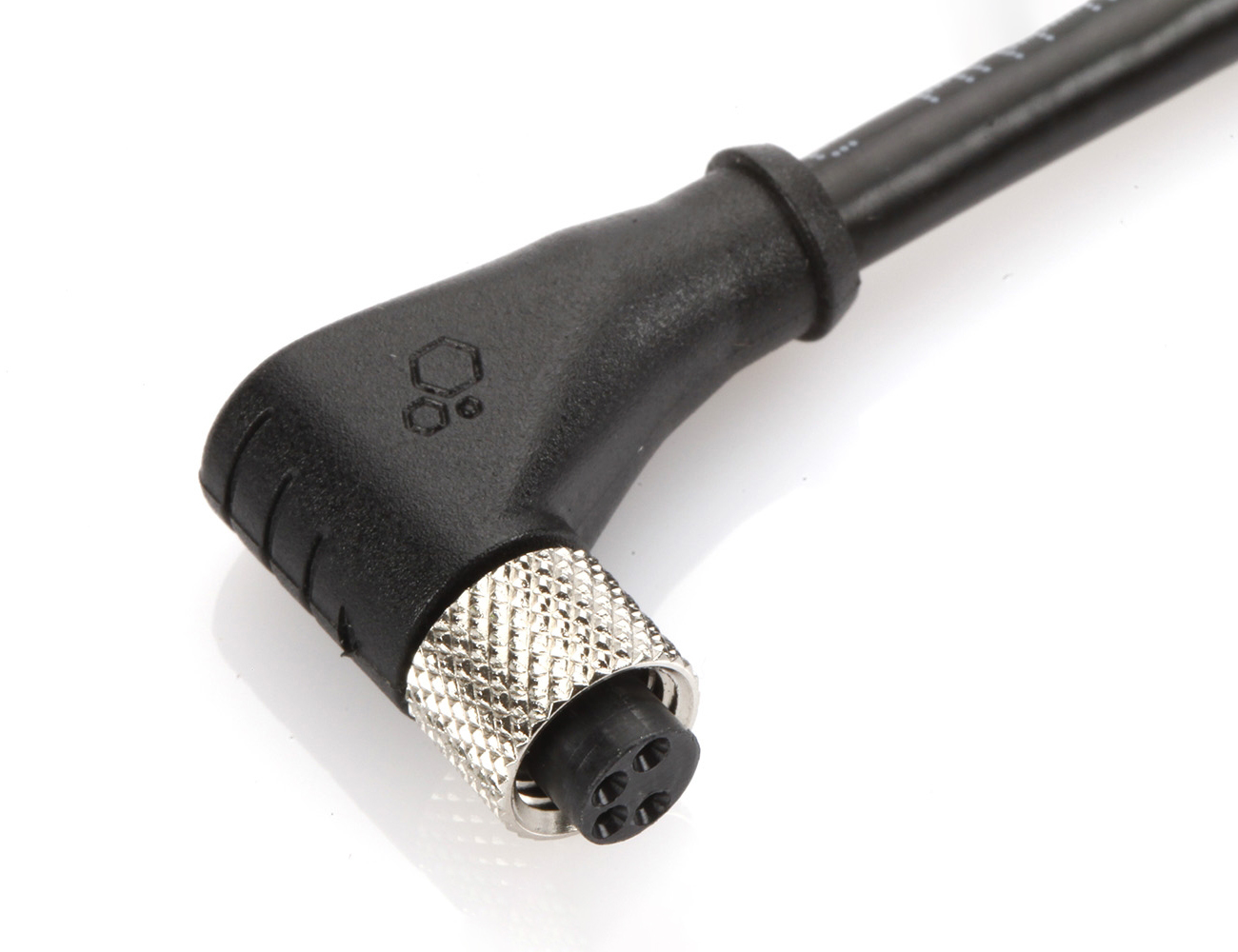

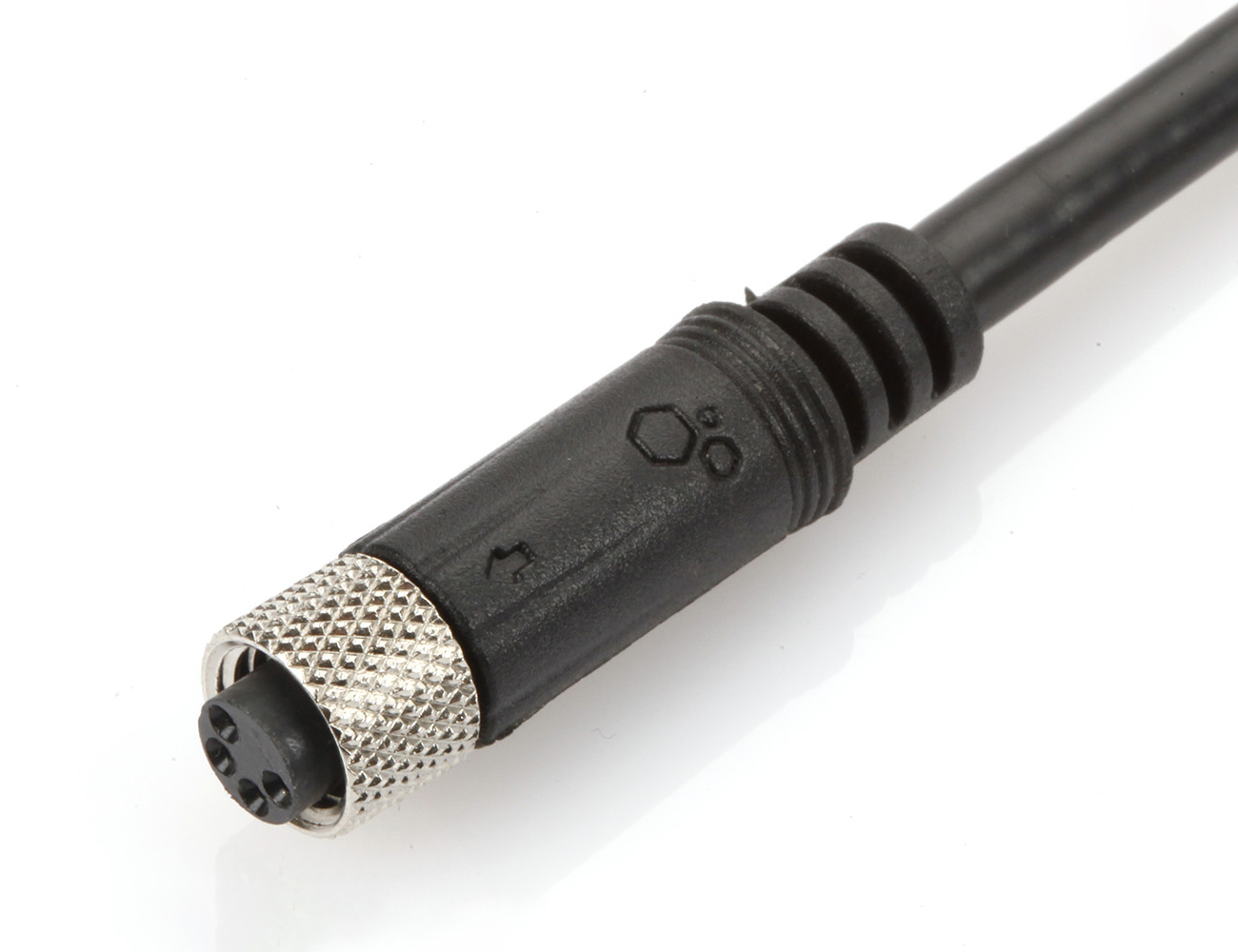

Product Code:TT-8F3P-W-E-6.8-P-2-G10
| Housing | PBT UL94V-0; Color:Black. |
| Contact | Phosphor Bronze |
| Nut | Brass. |
| O-Ring | NBR ; Color:Black |
| Contact | 10 Micro Inches Min. Gold Plating. |
| Solder Area | Gold Flash. |
| Under Plate | Nickel |
| Nut | Nickel Plated 60u''~100u'' Over All. |
| Circuits | 3A |
|---|---|
| Current Rating | 5A |
| Voltage Rating | 125V |
| Type | Female |
| IP Rating | IP67 |
| Temperature Range | -25°C # +85°C |
