5557

5557

5557

Product Code Product Description Current Value Voltage Value Withstand Voltage Body Material Operating Temperature Technical Drawing
2 Pin
5557-02H 2 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-02W 2 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
4 Pin
5557-04H 4 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-04W 4 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
6 Pin
5557-06H 6 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-06W 6 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
8 Pin
5557-08H 8 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-08W 8 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
10 Pin
5557-10H 10 Pin 4.20mm Female Mini Fit Connector 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-10W 10 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
12 Pin
5557-12H 12 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-12W 12 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
14 Pin
5557-14H 14 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-14W 14 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
16 Pin
5557-16H 16 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-16W 16 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
18 Pin
5557-18H 18 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-18W 18 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
20 Pin
5557-20W 20 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-20W 20 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
22 Pin
5557-22H 22 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-22W 22 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
24 Pin
5557-24H 24 Pin 4.20mm Double Row Female Mini Fit 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
5557-24W 24 Pin 4.20mm Double Row Male Housing 9A 600V 1500VAC @ 60 s. Nylon 66 UL94V-0 -25°C ~ +85°C
Terminal

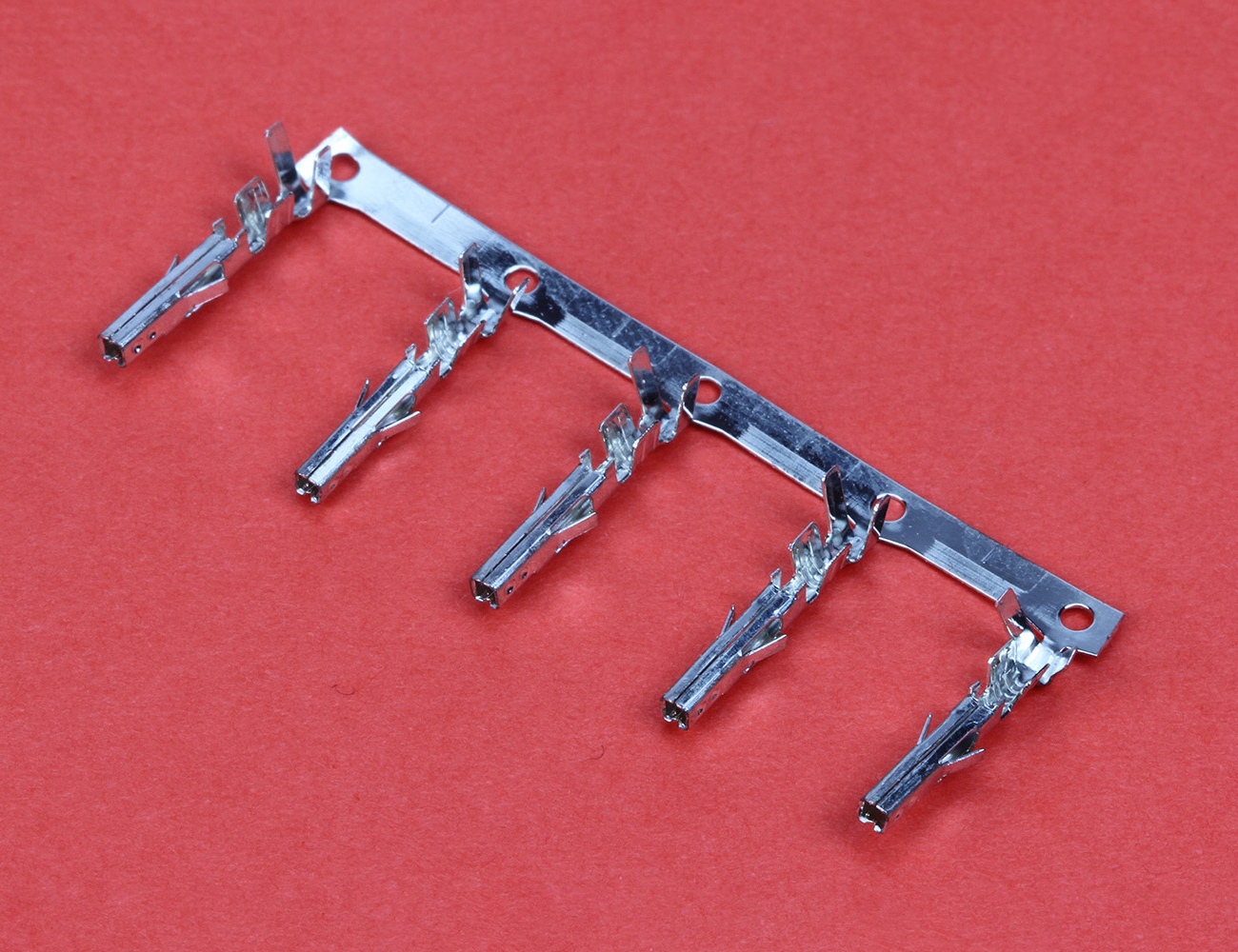

5557-FT Crimp Terminal Female 5557 Series Connector - - - Brass (Tin Plated) -

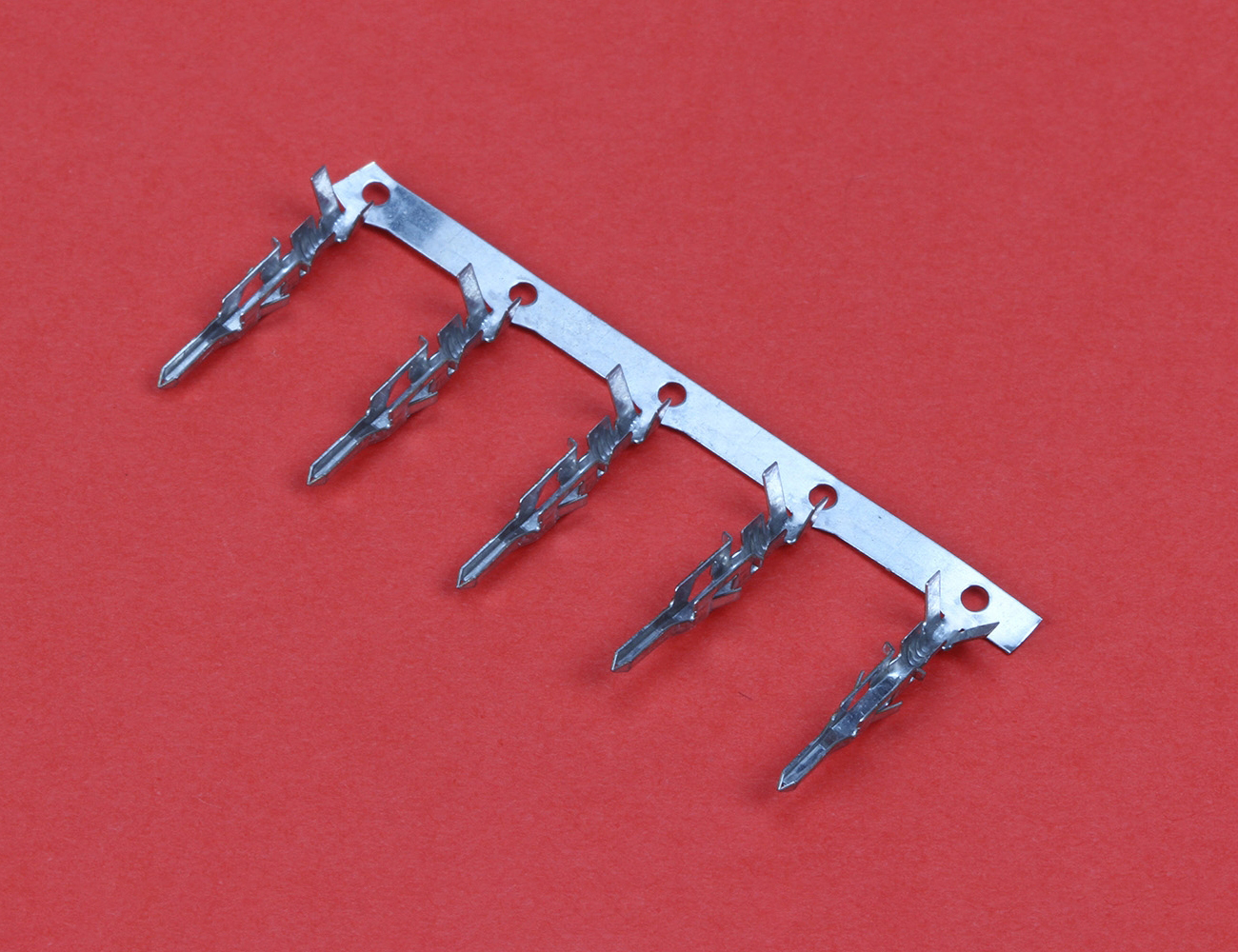

5557-MT Crimp Terminal Male 5557 Series Connector - - - Brass (Tin Plated) -
