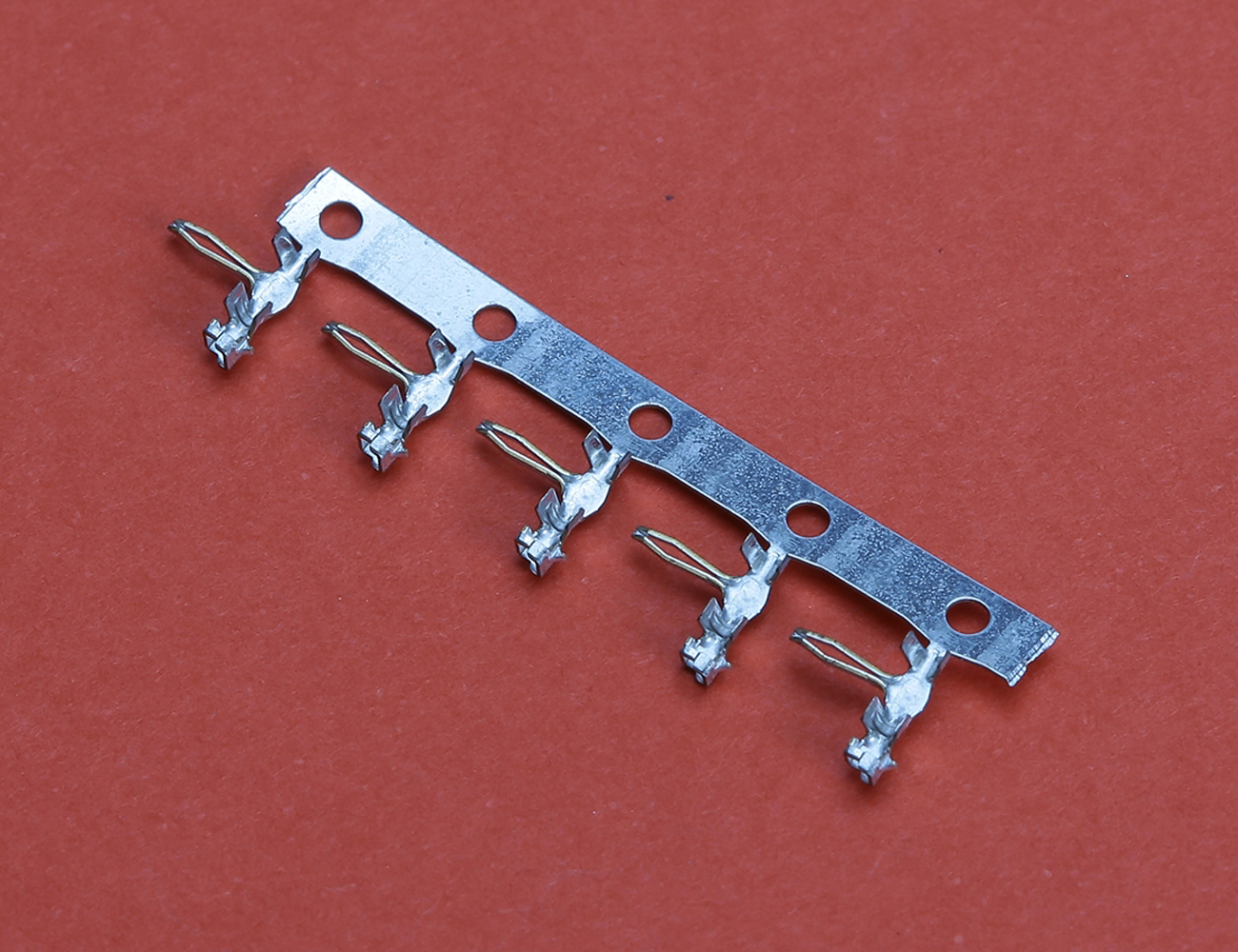

Product Code:MOLEX-0350211201
| Connector Type | CConnector Headers and PCB Receptacles |
|---|---|
| Termination Method | Crimp |
| Body Orientation | Right Angle |
| Mounting | Cable Mount |
| Packaging | Reel |
| Contact Type | Signal |
| Maximum Current Rating (A) | 3 |
| Maximum Contact Resistance (mOhm) | 5 |
| Contact Material | Brass |
| Contact Plating | Tin Over Copper |
| Shielded | No |
| Wire Size (AWG) | 24-30 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 105 |
| Product Length (mm) | 5.4 |
| Product Depth (mm) | 5.95 |
| Product Height (mm) | 1.9 |
