Product Code:200075
| Product Code | Product Description | Current Value | Voltage Value | Withstand Voltage | Body Material | Operating Temperature | Technical Drawing |
|---|---|---|---|---|---|---|---|
| 2 Pin | |||||||

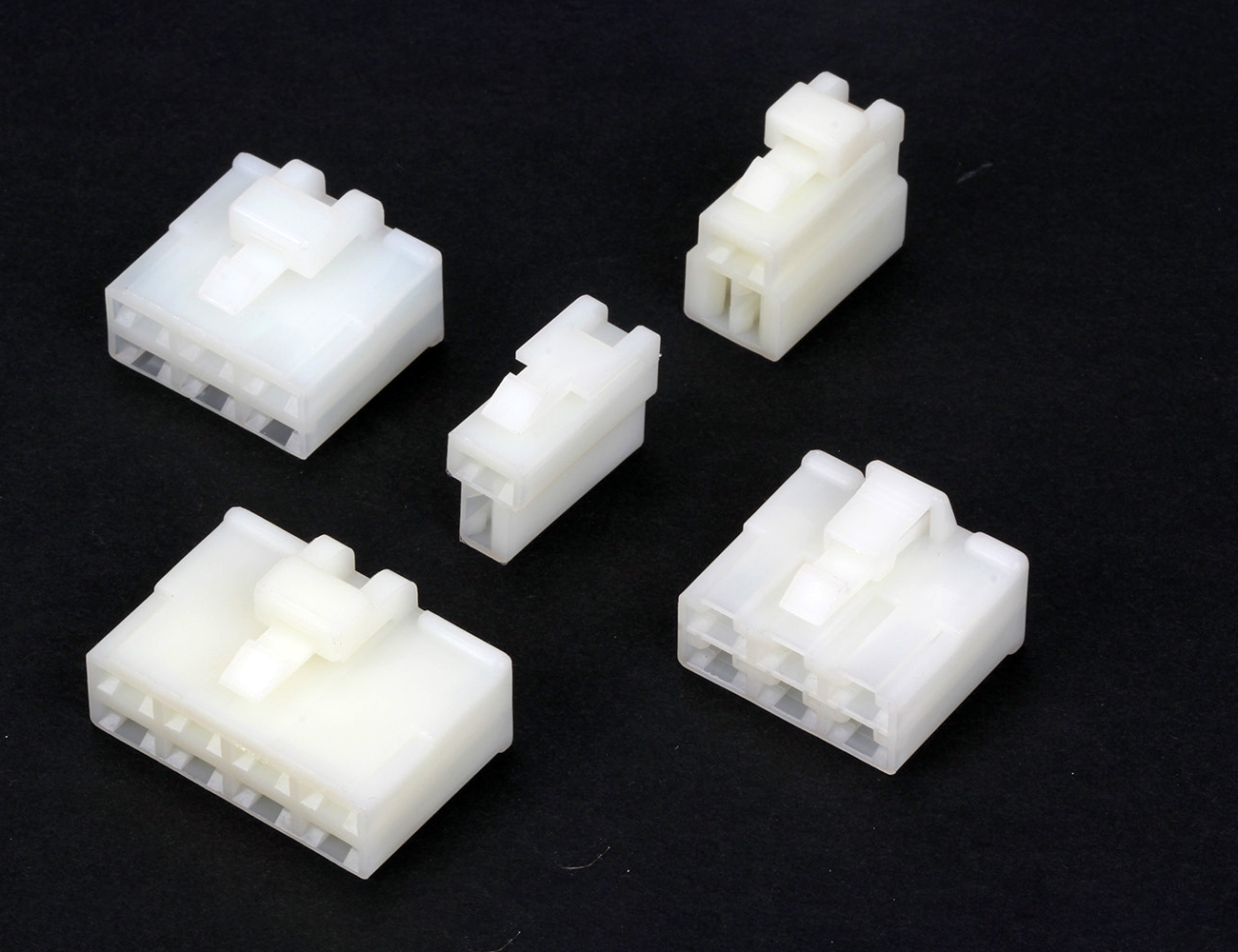

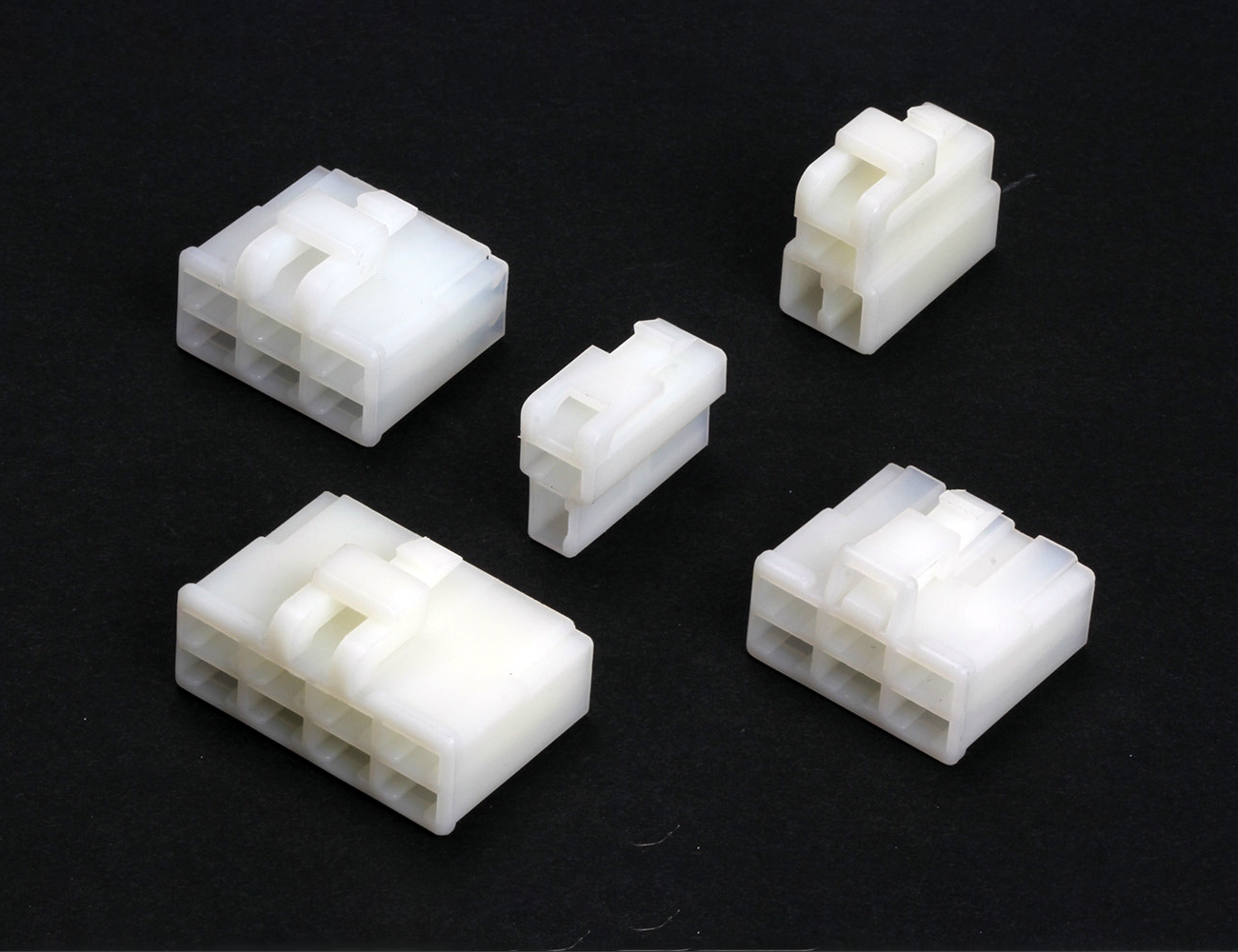

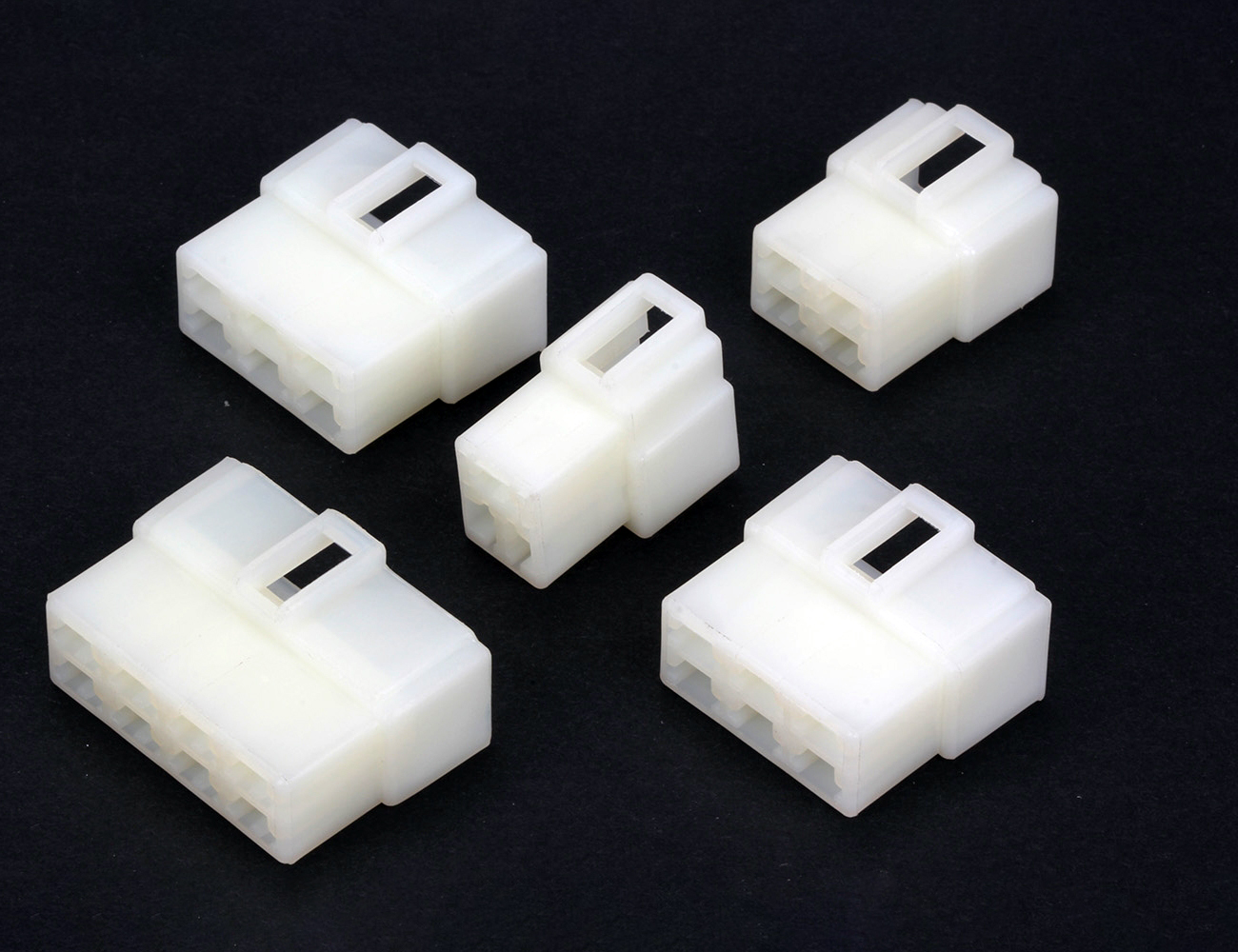

| 200075-02F | 2 Pin 6.00mm Double Row Female Housing | 20A | - | - | Nylon 66 | -40°C # +120°C | |

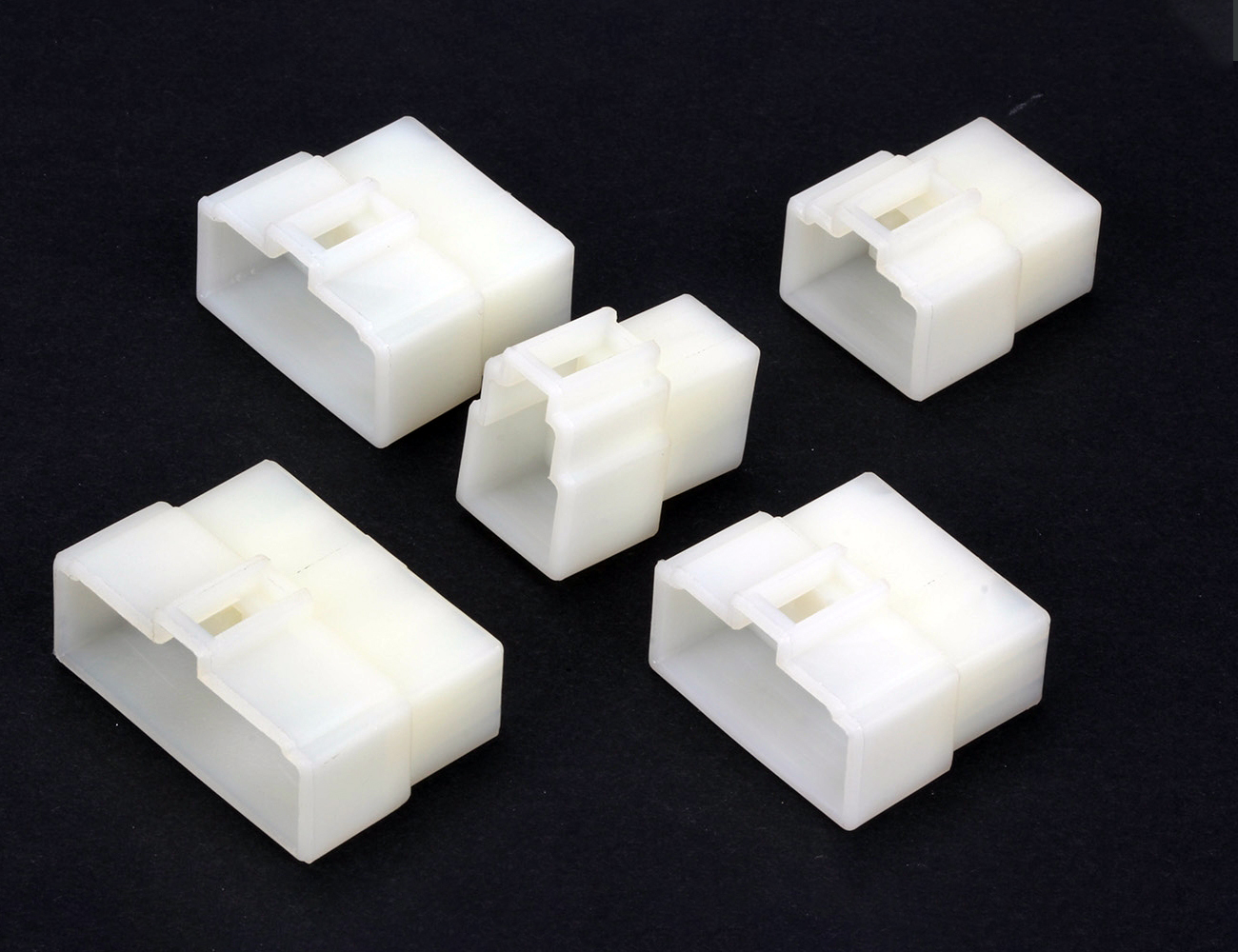

| 200075-02M | 2 Pin 6.00mm Double Row Male Housing | 20A | - | - | Nylon 66 | -40°C # +120°C | |
| 3 Pin | |||||||
| 200075-03F | 3 Pin 6.00mm Double Row Female Housing | 20A | - | - | Nylon 66 | -40°C # +120°C | |
| 200075-03M | 3 Pin 6.00mm Double Row Male Housing | 20A | - | - | Nylon 66 | -40°C # +120°C | |
| 4 Pin | |||||||
| 200075-04F | 4 Pin 6.00mm Double Row Female Housing | 20A | - | - | Nylon 66 | -40°C # +120°C | |
| 200075-04M | 4 Pin 6.00mm Double Row Male Housing | 20A | - | - | Nylon 66 | -40°C # +120°C | |
| 6 Pin | |||||||
| 200075-06F | 6 Pin 6.00mm Double Row Female Housing | 20A | - | - | Nylon 66 | -40°C # +120°C | |
| 200075-06M | 6 Pin 6.00mm Double Row Male Housing | 20A | - | - | Nylon 66 | -40°C # +120°C | |
| 8 Pin | |||||||
| 200075-08F | 8 Pin 6.00mm Double Row Female Housing | 20A | - | - | Nylon 66 | -40°C # +120°C | |
| 200075-08M | 8 Pin 6.00mm Çift Sıra Erkek Housing | 20A | - | - | Nylon 66 | -40°C # +120°C | |
| Terminal | |||||||

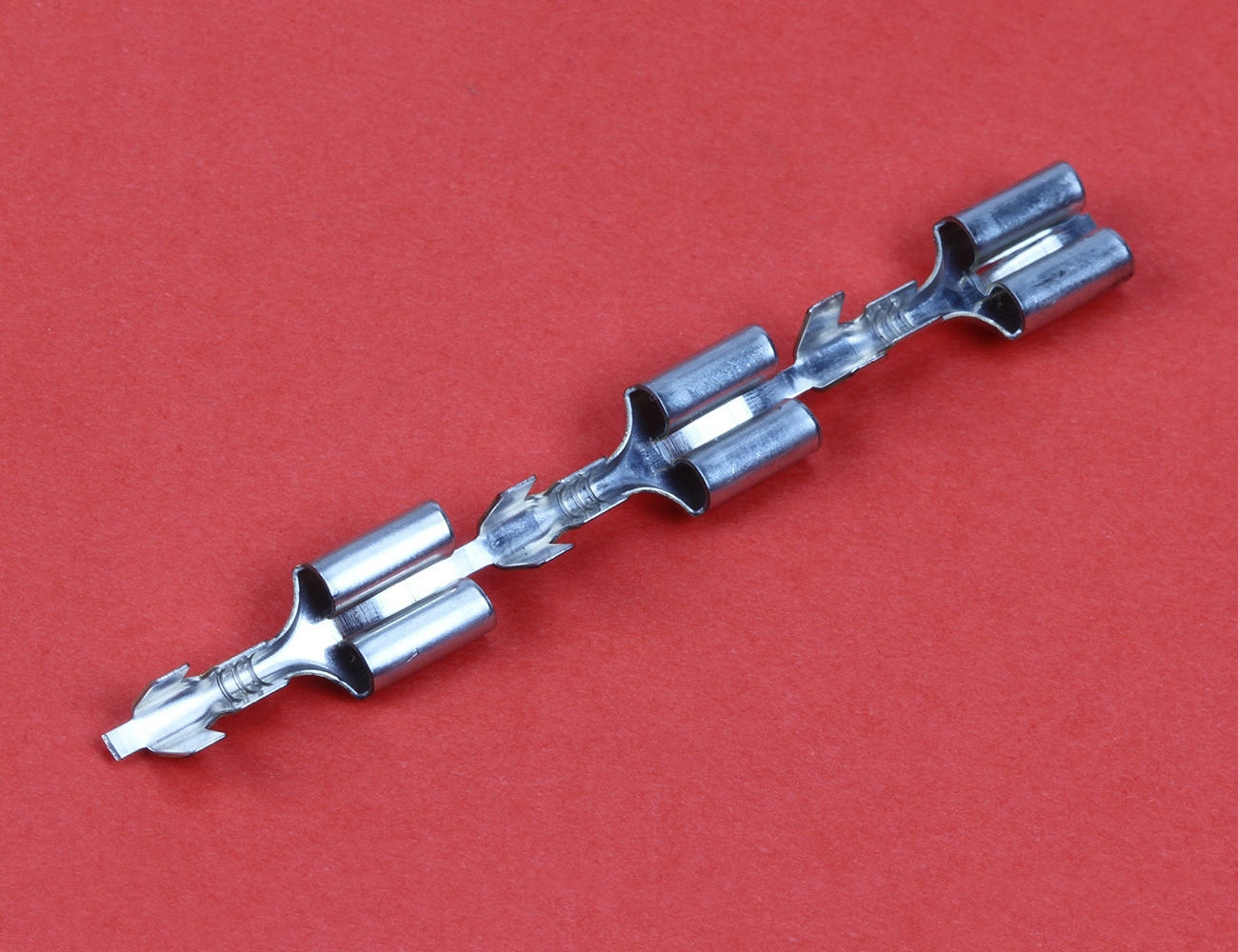

| 200075-TF | 200075-TF Terminal | - | - | - | Brass (Tin Plated) | - | |

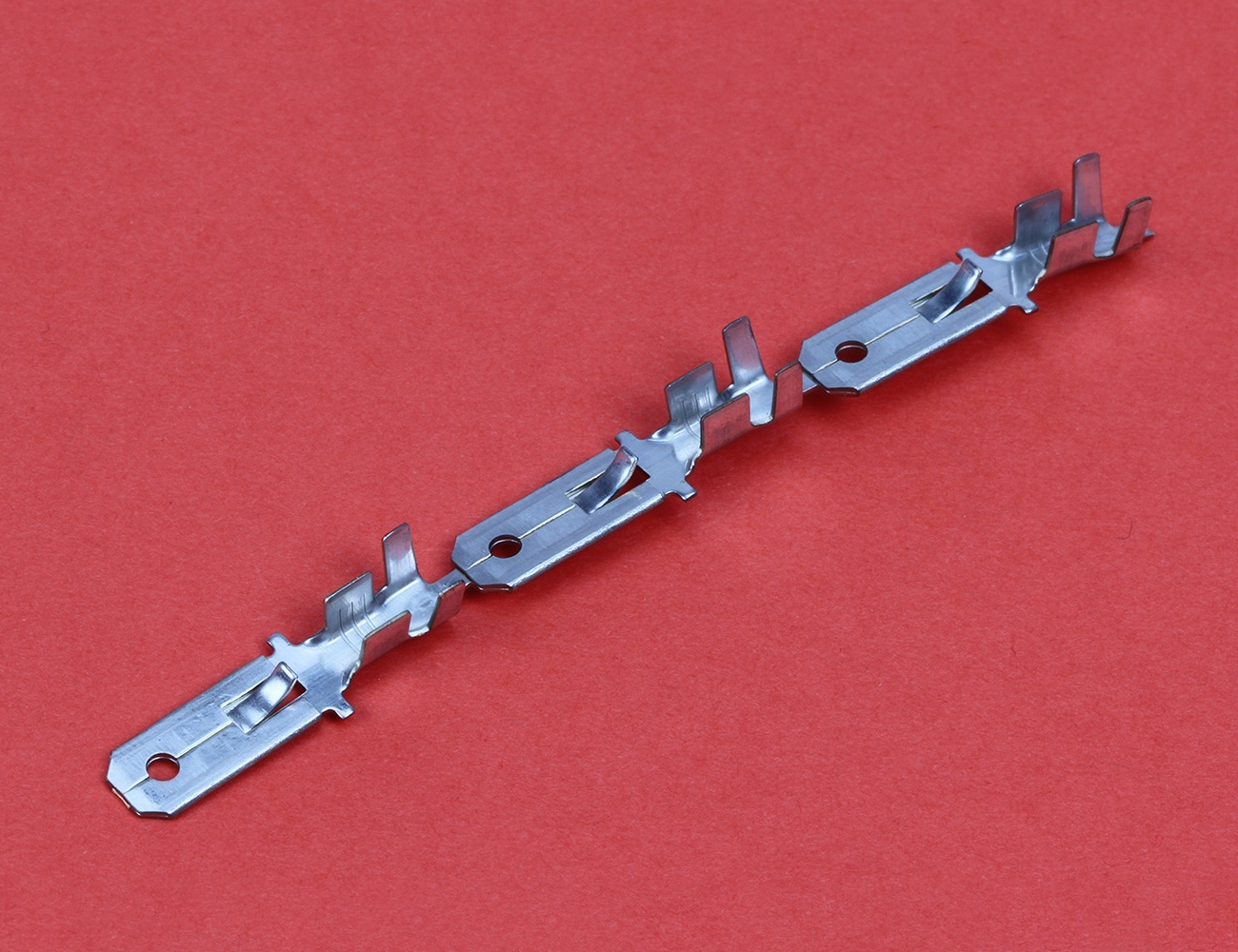

| 200075-TM | 200075-TM Terminal | - | - | - | Brass (Tin Plated) | - |
